Skateloader: Automated Truck/Container Loading System with Buffer

Technology Overview

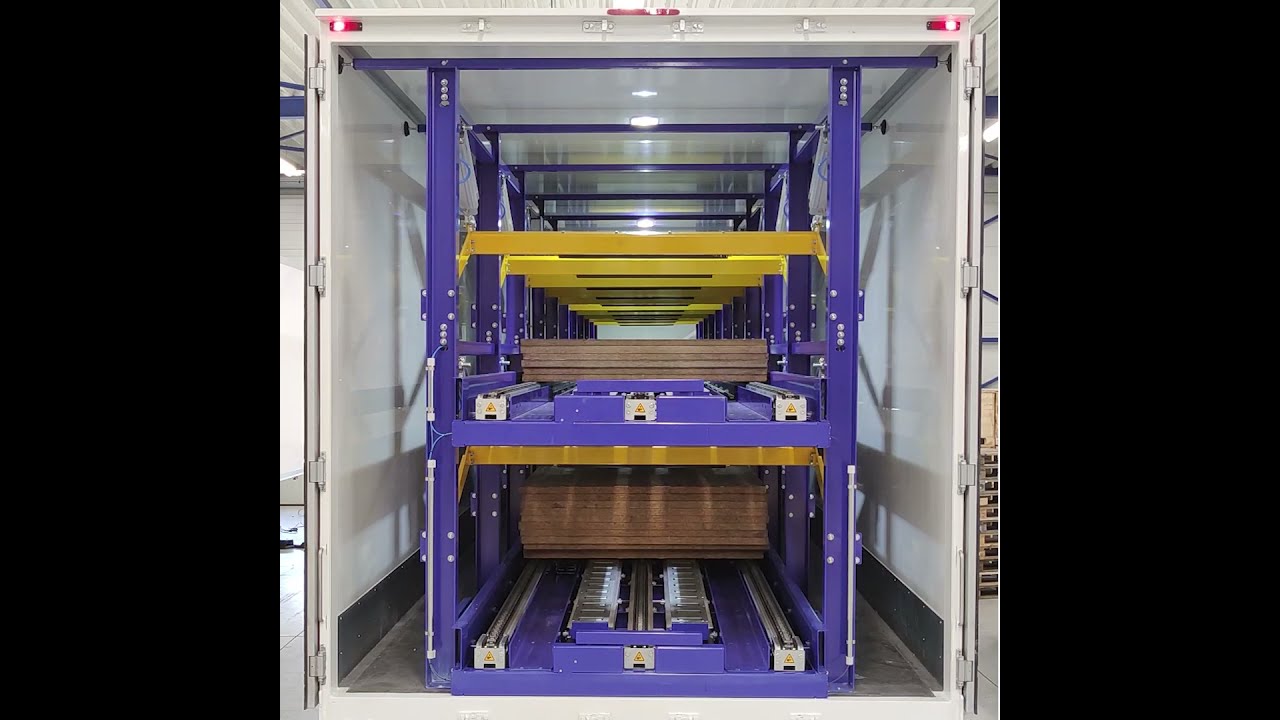

The Skateloader system by AncraSystems is an automated truck and container loading solution designed to handle the complex task of loading mixed pallet loads into standard, non-modified trailers and sea containers. Its primary objective is to maximize loading time efficiency and ensure a compact, stable load for transport. The system introduces an innovative buffer stage between the production lines and the final loading mechanism. This buffer system features a unique design where one lane can shift sideways to compact a load composed of pallets of different dimensions before it is transferred into the trailer. The entire loading process, including precise 3D alignment of the loading platform, is fully automated, eliminating the need for operator intervention and enabling rapid, consistent loading cycles.

How It Works

Core Principles

The system operates on the principle of automated, sequenced compaction and transfer. It uses a dual-lane buffer conveyor where one lane is mobile. After both lanes are filled with pallets (potentially of different sizes), the mobile lane shifts horizontally to compact the entire pallet matrix into a tight unit. This compacted load is then transferred by the Skateloader platform, which can adjust its position in three dimensions (X, Y, Z) to match the height and position of the feed conveyor and the trailer floor, ensuring a smooth loading operation.

Key Features & Capabilities

Side-Shift Buffer Compaction: The standout feature is the independent side-shifting left lane in the buffer system. This allows for dynamic compaction of loads consisting of pallets with different footprints, creating a dense, interlocked load block ideal for transport, which is difficult to achieve manually or with fixed systems.

Fully Automatic 3D Alignment: The Skateloader platform possesses the capability to automatically align itself in three dimensions (X, Y, Z). This allows it to interface with feed conveyors at variable heights and to load into trailers with different floor heights without manual adjustment or dock levelers.

Customized Conveyor for Mixed Patterns: The conveyor platform is not standard; it is customized with an irregular pitch across 9 chain tracks. This design supports highly specific, mixed loading patterns determined by the customer, allowing both short-side and long-side leading pallets to be loaded in the same row optimally.

Advantages & Benefits

The primary benefit is a significant increase in loading time efficiency, enabling the loading of a full trailer or container "in one shot in just a few minutes." The system ensures a compact and stable load through automated compaction, reducing the risk of damage during transit. By being fully automated, it eliminates manual labor from a physically demanding and time-consuming task, improving safety and consistency. The customization based on thorough pallet analysis ensures the solution is optimized for the specific pallet range and loading patterns of the operation, maximizing space utilization in each container.

Implementation Considerations

Implementing the Skateloader requires a detailed upfront analysis of all pallet sizes, weights, and desired loading patterns to customize the conveyor pitch and system logic effectively. The system must be integrated with the upstream production or staging conveyor lines that feed pallets to the buffer. The fully automated nature means that the facility must be prepared for a high degree of automation in the shipping area, including maintenance and troubleshooting procedures for the electromechanical system.

Use Cases & Applications

Ideal For

This technology is ideal for manufacturing plants, distribution centers, and logistics hubs with high-volume outbound shipping of palletized goods in mixed sizes, where loading speed, load stability, and labor efficiency are critical concerns.

Performance Metrics

The source emphasizes loading time efficiency as a key metric, stating the ability to load a full range of trailers/containers "in just a few minutes." The compaction capability is a qualitative metric for load stability and space utilization. The system's fully automatic operation contributes to consistent cycle times and reduced loading labor hours.

Conclusion

The AncraSystems Skateloader with its innovative buffer system represents a sophisticated answer to the enduring challenge of efficient truck and container loading. By automating the compaction and transfer process and incorporating 3D alignment, it addresses both speed and load quality. For operations with defined but varied pallet profiles and high shipping volumes, this system can transform the shipping dock from a manual bottleneck into a high-throughput, automated gateway. The requirement for customization based on a thorough pallet analysis ensures the solution delivers optimized performance for the specific application, making it a strategic investment for companies looking to gain a significant edge in their outbound logistics efficiency.
